The CXAO42104 operates with a single supply voltage as low as 1.4V, while drawing less than 690nA (TYP) of quiescent current per amplifier. This device is also designed to support rail-to-rail input and output operation. This combination of features supports battery-powered andportable applications.The CXAO42104 has a gain-bandwidth product of 100kHz (TYP)and is stable for gains ≥ 10. The combination of characteristics makes the CXAO42104 ideal for low frequency applications, such as battery current monitoring and sensor conditioning.The CXAO42104 operational amplifier is offered inquad configuration and it is specified for the extended industrial (-40℃ to +85℃) temperature range
-
[ CXAO42104 ]"
目录
7.相关产品
产品概述 返回TOP
The CXAO42104 operates with a single supply voltage as low as 1.4V, while drawing less than 690nA (TYP) of quiescent current per amplifier. This device is also designed to support rail-to-rail input and output operation. This combination of features supports battery-powered andportable applications.The CXAO42104 has a gain-bandwidth product of 100kHz (TYP)and is stable for gains ≥ 10. The combination of characteristics makes the CXAO42104 ideal for low frequency applications, such as battery current monitoring and sensor conditioning.The CXAO42104 operational amplifier is offered inquad configuration and it is specified for the extended industrial (-40℃ to +85℃) temperature range. The CXAO42104 is availablein the Green SOIC-14, TSSOP-14 packages.
产品特点 返回TOP
• Low Quiescent Current: 690nA/Amplifier (TYP)
• Rail-to-Rail Input and Output
• Gain-Bandwidth Product: 100kHz (TYP)
• Stable for Gains ≥ 10
• Wide Supply Voltage Range: 1.4V to 5.5V
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOIC-14, TSSOP-14 Packages
应用范围 返回TOP
Toll Booth Tags
Wearable Products
Temperature Measurement
Battery Powered System
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！
产品封装图 返回TOP

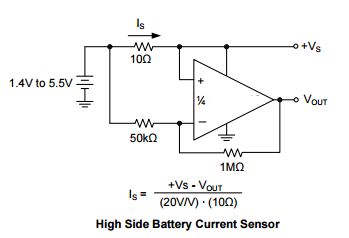

电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
微功耗运算放大器 |
||||||||||||
|
Part No. |
CH |
SHDN |
VCC (Min)(V) |
VCC (Max)(V) |
VOS (mV) |
Iq/CH (nA) |
Drift (μV/°C) |
IB (pA) |
GBP (kHz) |
SR (V/ms) |
ENOISE (μVPP) |
Package |
|
1 |
N |
1.4 |
5.5 |
2.5 |
710 |
2.5 |
1 |
14.5 |
3.3 |
3.4 |
SOT-23-5 SOIC-8 MSOP-8 |
|
|
2 |
N |
1.4 |
5.5 |
2.5 |
670 |
2.5 |
1 |
14.5 |
4.2 |
3.2 |
SOIC-8 MSOP-8 |
|
|
4 |
N |
1.4 |
5.5 |
2.5 |
670 |
2.5 |
1 |
15 |
3.4 |
3.2 |
SOIC-14 TSSOP-14 TQFN-3x3-16L |
|
|
1 |
N |
1.4 |
5.5 |
2.5 |
710 |
2.5 |
1 |
100 |
16 |
3.2 |
SOT-23-5 SOIC-8 MSOP-8 |
|
|
2 |
N |
1.4 |
5.5 |
2.5 |
670 |
2.5 |
1 |
100 |
14.5 |
3 |
SOIC-8 MSOP-8 |
|
|
4 |
N |
1.4 |
5.5 |
2.5 |
690 |
2.5 |
1 |
100 |
14.5 |
3.5 |
SOIC-14 TSSOP-14 |
|
|
1 |
N |
1.4 |
5.5 |
2.5 |
380 |
2 |
1 |
5 |
1.5 |
4.9 |
SOT-23-5 SOIC-8 MSOP-8 |
|
|
2 |
N |
1.4 |
5.5 |
2.5 |
350 |
2 |
1 |
5 |
1.6 |
4 |
SOIC-8 MSOP-8 |
|
