   产品概述 返回TOPdZ0嘉泰姆

The CXAO42103 operates with a single supply voltage as low as 1.4V, while drawing less than 670nA (TYP) of quiescent current per amplifier. This device is also designed to support rail-to-rail input and output operation.This combination of features supports battery-powered and portable applications.The CXAO42103 has a gain-bandwidth product of 100kHz (TYP) and is stable for gains ≥ 10. The combination of characteristics makes the CXAO42103 ideal for low frequency applications, such as battery current monitoring and sensor conditioning.The CXAO42103 operational amplifier is offered indual configuration and it is specified for the extended industrial (-40℃ to +85℃) temperature range. The CXAO42103 is available in the Green SOIC-8 and MSOP-8 packages.

   产品特点 返回TOPdZ0嘉泰姆

• Low Quiescent Current: 670nA/Amplifier (TYP)dZ0嘉泰姆

• Rail-to-Rail Input and OutputdZ0嘉泰姆
• Gain-Bandwidth Product: 100kHz (TYP)dZ0嘉泰姆
• Stable for Gains ≥ 10dZ0嘉泰姆
• Wide Supply Voltage Range: 1.4V to 5.5VdZ0嘉泰姆
• -40℃ to +85℃ Operating Temperature RangedZ0嘉泰姆

• Available in Green SOIC-8 and MSOP-8 PackagesdZ0嘉泰姆

   应用范围 返回TOPdZ0嘉泰姆

oll Booth TagsdZ0嘉泰姆

Wearable ProductsdZ0嘉泰姆

Temperature MeasurementdZ0嘉泰姆

Battery Powered SystemdZ0嘉泰姆

   技术规格书（产品PDF) 返回TOP dZ0嘉泰姆

     需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！dZ0嘉泰姆

 dZ0嘉泰姆

产品封装图 返回TOPdZ0嘉泰姆

dZ0嘉泰姆

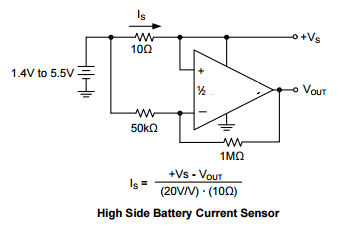

电路原理图 返回TOPdZ0嘉泰姆

dZ0嘉泰姆
