The CXEP3476 CXEP3477 CXEP3478 CXEP3478B is a linear regulator designed to meet the JEDEC SSTL-2 and SSTL-3 (Series Stub Termination Logic) specifications for termination of DDR-SDRAM. It contains a high-speed operational amplifier that provides excellent response to the load transients.
-
[ CXEP3476/7 ]"
目录
7.相关产品
产品概述 返回TOP
The CXEP3476 CXEP3477 CXEP3478 CXEP3478B is a linear regulator designed to meet the JEDEC SSTL-2 and SSTL-3 (Series Stub Termination Logic) specifications for termination of DDR-SDRAM. It contains a high-speed operational amplifier that provides excellent response to the load transients. This device can deliver 1.5A continuous current and transient peaks up to 3A in the application as required for DDR-SDRAM termination. With an independent VSENSE pin, the CXEP3476 CXEP3477 CXEP3478 CXEP3478B can provide superior load regulation. The CXEP3476 CXEP3477 CXEP3478 CXEP3478B provides a VREF output as the reference for the applications of the chipset and DIMMs.
The CXEP3476 CXEP3477 CXEP3478 CXEP3478Bcan easily provide the accurate VTT and VREF voltages without external resistors that PCB areas can be reduced. The quiescent current is as low as 280μA @ 2.5V. So the power consumption can meet the low power consumption applications.
产品特点 返回TOP
„ Operation Supply Voltage: 1.6V to 5.5V
„ Low Supply Current: 280μA @ 2.5V
„ Low Output Offset
„ Source and Sink Current
„ Low External Component Count
„ No Inductor Required
„ No external Resistors Required
„ Thermal Shutdown Protection
„ SOP-8 with Power-Pad package
应用范围 返回TOP
„ DDR-SDRAM Termination Voltage
„ DDR-I / DDR-II Termination Voltage
„ SSTL-2
„ SSTL-3
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

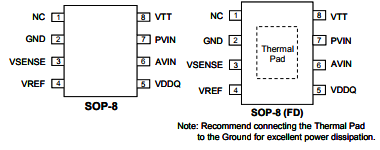

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品.......
|
DDR Terminator |
|||||||||
|
Part NO. |
VDDQ (V)min |
VDDQ (V)max |
VCNTL (V) |
Isource (A) |
Isink (A) |
IVREF (mA) |
Isupply (μA) |
Note |
Package |
|
1.2 |
3.6 |
3.3~5.5 |
3 |
3 |
10 |
750 |
DDR3/3L,LPDDR2/3 |
TDFN2X2-10 |
|
|
1.2 |
3.6 |
3~5.5 |
1.8 |
1.8 |
-- |
700 |
DDR1/2/3/3L |
SOP8(FD)/MSOP-8(FD) |
|
|
1.2 |
3.6 |
3.3~5.5 |
3 |
3 |
-- |
750 |
DDR1/2/3/3L |
SOP8(FD) |
|
|
1.2 |
3.6 |
3~5.5 |
2 |
2 |
-- |
1300 |
DDR1/2/3 |
SOT23-5/SOP8/ MSOP8(FD) |
|
|
1.6 |
5.5 |
1.6~5.5 |
1.5 |
1.5 |
0.03 |
280 |
DDR1/2 |
SOP8(FD) |
|
|
1.2 |
3.6 |
3~5.5 |
4~3 |
4~3 |
10 |
800 |
DDR1/2/3/3L |
MSOP10(FD)/MSOP8(FD) |
|
|
1.2 |
3.6 |
3~5.5 |
4~3 |
4~3 |
10 |
900 |
DDR1/2/3/3L |
MSOP8/SOP8(FD) |
|
|
1.2 |
3.6 |
3~5.5 |
4 |
4 |
10 |
900 |
DDR1/2/3 |
SOP8(FD) |
|
