   产品概述 返回TOP404嘉泰姆

The CXSD62173 CXSD62173A CXSD62173C is a 6A, synchronous, step-down converter with integrated 30mW N-channel High-Side MOSFET and 12mW Low-Side MOSFET. The CXSD62173 CXSD62173A CXSD62173C steps down high voltage to generate low-voltage chipset or RAM supplies in notebook computers. The CXSD62173 CXSD62173A CXSD62173C provides excellent transient response and accurate DC voltage output in either PFM or PWM Mode. In Pulse Frequency Mode (PFM), the CXSD62173 CXSD62173A CXSD62173Cprovides very high efficiency over light to heavy loads with loadingmodulated switching frequencies. In PWM Mode, the converter works nearly at constant frequency for low-noise requirements. The CXSD62173 CXSD62173A CXSD62173C is equipped with accurate current-limit, output under-voltage, and output over-voltage protections, perfect for various applications. A Power-On-Reset function monitors the voltage on VLDO to prevent wrong operation during power-on. The CXSD62173 CXSD62173A CXSD62173 Chas external adjustable soft-start and built-in an integrated output discharge method for soft stop. A soft-start ramps up the output voltage with programmable timing to reduce the start-up current. A soft-stop function actively discharges the output capacitors. The CXSD62173 CXSD62173A CXSD62173C is available in TQFN4x4-23 (Power PAK).

   产品特点 返回TOP404嘉泰姆

· Adjustable Output Voltage from +0.8V to +12V - 0.8V Reference Voltage - +1% Accuracy over Temperature 404嘉泰姆

· Operates from An Input Battery Voltage Range of +2.7V to +28V 404嘉泰姆

· 20mA Low Dropout Regulator (LDO) with Fixed 5. 3V Output 404嘉泰姆

· Power-On-Reset Monitoring on LDO pin 404嘉泰姆

· Excellent line and load transient responses 404嘉泰姆

· PFM mode for increased light load efficiency 404嘉泰姆

· Programmable PWM Frequency from 100kHz to 1000kHz 404嘉泰姆

· Integrated 30mW at LDO=5V N-Channel MOSFET For High Side 404嘉泰姆

· Integrated 12mW at LDO=5V N-Channel MOSFET For Low Side 404嘉泰姆

· Integrated Bootstrap Forward P-CH MOSFET 404嘉泰姆

· External Adjustable Soft-Start and Soft-Stop 404嘉泰姆

· Selectable Forced PWM or automatic PFM/PWM mode 404嘉泰姆

· Power Good Monitoring 404嘉泰姆

· 70% Under-Voltage Protection 404嘉泰姆

· 125% Over-Voltage Protection 404嘉泰姆

· Current-Limit Protection 404嘉泰姆

- Using Sense Low-Side MOSFET’s RDS(ON) 404嘉泰姆

· Over-Temperature Protection 404嘉泰姆

· TQFN-23 4mmx4mm package 404嘉泰姆

· Lead Free and Green Device Available (RoHS Compliant)404嘉泰姆

   应用范围 返回TOP404嘉泰姆

· Notebook 404嘉泰姆

· Mother Board 404嘉泰姆

· Table PC 404嘉泰姆

· Hand-Held Portable 404嘉泰姆

· AIO PC 404嘉泰姆

· Set-top boxes 404嘉泰姆

· LCD TV404嘉泰姆

   技术规格书（产品PDF) 返回TOP 404嘉泰姆

     需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！404嘉泰姆

 404嘉泰姆

产品封装图 返回TOP404嘉泰姆

404嘉泰姆
404嘉泰姆

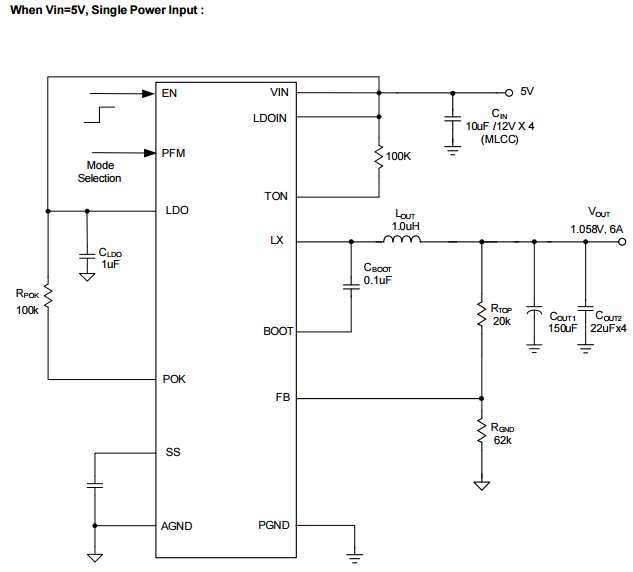

电路原理图 返回TOP404嘉泰姆

404嘉泰姆
404嘉泰姆
