The CXSD62206/CXSD62207 series is a group of synchronous-rectification type DC/DC converters with a built-in P-channel MOS driver transistor and N-channel MOS switching transistor, designed to allow the use of ceramic capacitors. Output voltage is internally set in a range from 0.8V to 3.6V (accuracy: ?.0%) increments of 0.05V. The device provides a high efficiency, stable power supply with an output current of 1.0A to be configured using only a coil and two capacitors connected externally. Oscillation frequency is set to 1.2MHz or 6.0MHz can be selected for suiting to your particular application. As for operation mode HiSAT-COT (*) control excellent in transient response, the CXSD62206 series is PWM control, the CXSD62207 series is automatic PWM/PFM switching control, allowing fast response, low ripple and high efficiency over the full range of loads (from light load to heavy load). During stand-by, all circuits are shutdown to reduce current consumption to as low as 1.0μA or less. As for the soft-start function as fast as 0.3ms in typical for quick turn-on. With the built-in UVLO (Under Voltage Lock Out) function, the internal P-channel MOS driver transistor is forced OFF when input voltage becomes 2.00V or lower. The B types integrate CL High Speed discharge function which enables the electric charge at the output capacitor CL to be discharged via the internal
-
"
目录
7.相关产品
产品概述 返回TOP
CXSD62207系列产品是可对应陶瓷电容,内置了P沟道MOS驱动晶体管及N沟道 MOS开关晶体管的同步整流型的降压DC/DC转换器。输出电压能在0.8V～3.6V(±2.0%)之间，能以0.05V间隔在内部设定。外接零部件只使用线圈和电容，能得到输出电流为1A的高效率稳定电源。有1.2MHz,6MHz的振荡频率，可以选择最适用于应用目的的频率。采用了具有优越的瞬态响应的HiSAT-COT(*)控制，PWM/PFM自动转换控制CXSD62207)，在从轻负载到重负载的整个负载区域内，实现了灵活的高速响应,低纹波率,高效率。通过在待机时整个电路停止工作，可以把消耗电流抑制在1.0μA以下。软启动功能在0.30ms(TYP.) 即可使电压高速地上升。内置了UVLO(Under Voltage Lock Out)功能，当输入电压在1.6V以下时，强制地使内部P沟道 MOS驱动晶体管停止工作。此外，B型通过CL的放电功能，在待机时使输出电容中的电荷放电。The CXSD62206/CXSD62207 series is a group of synchronous-rectification type DC/DC converters with a built-in P-channel MOS driver transistor and N-channel MOS switching transistor, designed to allow the use of ceramic capacitors. Output voltage is internally set in a range from 0.8V to 3.6V (accuracy: ±2.0%) increments of 0.05V. The device provides a high efficiency, stable power supply with an output current of 1.0A to be configured using only a coil and two capacitors connected externally. Oscillation frequency is set to 1.2MHz or 6.0MHz can be selected for suiting to your particular application. As for operation mode HiSAT-COT (*) control excellent in transient response, the CXSD62206 series is PWM control, the CXSD62207 series is automatic PWM/PFM switching control, allowing fast response, low ripple and high efficiency over the full range of loads (from light load to heavy load). During stand-by, all circuits are shutdown to reduce current consumption to as low as 1.0μA or less. As for the soft-start function as fast as 0.3ms in typical for quick turn-on. With the built-in UVLO (Under Voltage Lock Out) function, the internal P-channel MOS driver transistor is forced OFF when input voltage becomes 2.00V or lower. The B types integrate CL High Speed discharge function which enables the electric charge at the output capacitor CL to be discharged via the internal discharge. Two types of package SOT-25, USP-6C are available.

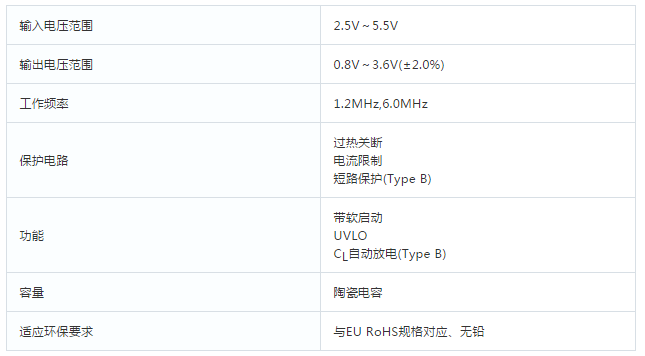

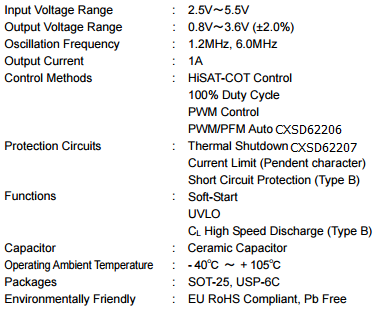

产品特点 返回TOP
应用范围 返回TOP
●Smart phones / Mobile phones
●Bluetooth
●Portable game consoles
●Digital still cameras / Camcorders
●Point-of-Load (POL)
●Wearable devices
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！
产品封装图 返回TOP

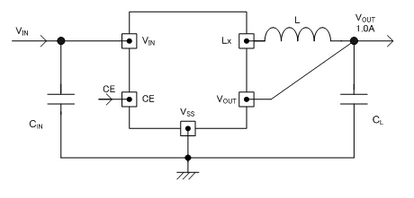

电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
降压型DC/DC转换器 |
|||||||||||||||
|
产品名称 |
特点 |
封装 |
控制 |
FET |
Synch ronous |
VIN MIN |
VIN MAX |
VOUT MIN |
VOUT MAX |
IOUT IIN |
FB/VOUT电压精度 |
振荡频率kHz |
限制 电流 mA |
消耗 电流 μA
|
限定电流 |
|
(V) |
(V) |
(V) |
(V) |
mA |
自动 闩锁 |
||||||||||
|
PWM/PFM |
SOT25 USP-6C |
PWM |
外置 |
No |
2.2 |
10 |
1.5 |
6 |
1000 |
±2.5% |
180 |
15 |
|||
|
PWM/PFM |
SOT25 USP-6C |
PWM/PFM |
外置 |
No |
2.2 |
10 |
1.5 |
6 |
1000 |
±2.5% |
180 |
15 |
|||
|
PWM/PFM |
TSSOP16 |
PWM/PFM 外部转换 |
外置 |
Yes |
4 |
25 |
1.5 |
15 |
5000 |
±1.5% |
300 |
450 |
闩锁 |
||
|
PWM/PFM |
SOT2 5USP-6C |
PWM |
外置 |
No |
2.8 |
16 |
1.2 |
3000 |
±1.5% |
300 |
25 |
闩锁 |
|||
|
PWM/PFM |
SOT2 5USP-6C |
PWM/PFM |
外置 |
No |
2.8 |
16 |
1.2 |
3000 |
±1.5% |
300 |
25 |
闩锁 |
|||
|
PWM/PFM |
MSOP10 USP10B |
PWM/PFM 外部转换 |
Pch |
Yes |
2.5 |
6 |
0.9 |
6 |
1000 |
±2.0% |
1000 |
900 2000 |
30 |
闩锁 |
|
|
PWM/PFM |
MSOP1 0USP10B |
PWM/PFM 外部转换 |
Pch |
Yes |
2.5 |
6 |
0.9 |
6 |
1000 |
±2.0% |
1000 |
900 2000 |
30 |
闩锁 |
|
|
PWM/PFM |
SOT25 USP6C USP6EL WLP5-03 |
PWM |
Pch |
Yes |
1.8 |
6 |
0.8 |
4 |
600 |
±2.0% |
1200 |
1050 |
15 |
闩锁 |
|
|
PWM/PFM |
SOT25 USP6C USP6EL WLP5-03 |
PWM/PFM |
Pch |
Yes |
1.8 |
6 |
0.8 |
4 |
600 |
±2.0% |
1200 |
1050 |
15 |
闩锁 |
|
|
PWM/PFM |
SOT25 USP6C USP6EL WLP5-03 |
PWM/PFM 外部转换 |
Pch |
Yes |
1.8 |
6 |
0.8 |
4 |
600 |
±2.0% |
1200 |
1050 |
15 |
闩锁 |
|
|
2A降压同步整流 |
SOP8F USP10B |
PWM |
Pch |
Yes |
2.7 |
6 |
0.9 |
6 |
2000 |
±2.0% |
1200 |
4000 |
41 |
自动 |
|
|
2A降压同步整流 |
SOP8FD USP10B |
PWM/PFM |
Pch |
Yes |
2.7 |
6 |
0.9 |
6 |
2000 |
±2.0% |
1200 |
4000 |
41 |
自动 |
|
|
400mA 降压同步整流 |
USPN6 |
PWM |
Pch |
Yes |
2.3 |
6 |
0.8 |
4 |
400 |
±2.0% |
1200 |
900 |
18 |
闩锁 |
|
|
400mA 降压同步整流 |
USPN6 |
PWM/PFM |
Pch |
Yes |
2.3 |
6 |
0.8 |
4 |
400 |
±2.0% |
1200 |
900 |
18 |
闩锁 |
|
|
内置驱动晶体管、工作于16V |
SOT26W USP6C |
PWM |
Nch |
No |
4.5 |
16 |
1.2 |
5.6 |
1000 |
±2.0% |
1200 |
2500 |
150 |
闩锁 |
|
|
PWM/PFM |
SOT26W USP6C USP6C |
PWM/PFM |
Nch |
No |
4.5 |
16 |
1.2 |
5.6 |
1000 |
±2.0% |
1200 |
2500 |
150 |
闩锁 |
|
|
PWM |
SOP8FD |
PWM |
Nch |
Yes |
4.5 |
18 |
1 |
12 |
2200 |
±1.5% |
500 |
2100 |
760 |
自动 闩锁 |
|
|
适应105℃工作于30V 低消耗电流 |
SOP8FD |
PWM |
Nch |
No |
7 |
30 |
1.2 |
12 |
2000 |
±2.0% |
300 |
3200 |
200 250 |
自动・闩锁 |
|
|
适应105℃工作于30V 低消耗电流 |
SOP8FD |
PWM/PFM |
Nch |
No |
7 |
30 |
1.2 |
12 |
2000 |
±2.0% |
300 |
3200 |
200 250 |
自动 闩锁 |
|
|
适应105℃工作于30V 低消耗电流 |
TSSOP16 USP10B |
PWM/PFM 外部转换 |
外置 |
No |
3 |
30 |
0.8 |
±2.0% |
ADJ |
30 |
自动 闩锁 |
||||
|
PWM/PFM For USB 3.0 |
SOT25 USP6B |
PWM/PFM |
Pch |
Yes |
2 |
6 |
3.3 |
500 |
±2.0% |
600 |
700 |
15 |
闩锁 |
||
|
PWM/PFM |
SOT25 USP6C |
PWM/PFM |
Pch |
Yes |
2 |
6 |
1.2 |
600 |
±2.0% |
1200 |
1050 |
15 |
闩锁 |
||
|
COT控制 1A |
SOT25 USP6C |
PWM |
Pch |
Yes |
2.5 |
5.5 |
0.8 |
3.6 |
1000 |
±2.0% |
1200 |
1500 |
250 400 |
自动 |
|
|
COT控制 1A |
SOT25 USP6C |
PWM/PFM |
Pch |
Yes |
2.5 |
5.5 |
0.8 |
3.6 |
1000 |
±2.0% |
1200 |
1500 |
15,40 |
自动 |
|
|
COT控制 1A |
LGA8B01 |
PWM/PFM 外部转换 |
Pch |
Yes |
2.5 |
5.5 |
0.8 |
3.6 |
1000 |
±2.0% |
1200 |
1500 |
|||
