CXLB73122 is a complete constant-current & constant voltage linear charger for single cell lithium-ion and Lithium-Polymer batteries. Its SOT-23 package and low external component count make CXLB73122 ideally suited for portable applications. Furthermore, the CXLB73122 is specifically designed to work within USB power specification. At the same time, CXLB73122 can also be used in the standalone lithium-ion and Lithium-polymer battery chargers. No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.22V, and the charge current can be programmed externally with a single resistor. The CXLB73122 automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached. When the input supply (wall adapter or USB supply) is removed, the CXLB73122 automatically enters a low current stage, dropping the battery drain current to less than 2uA. The CXLB73122 can be put into shutdown mode, reducing the supply current to 20uA. Other features include charge current monitor, undervoltage lockout, automatic recharge and a status pin to indicate charge termination and the presence of an input voltage.
-
[ CXLB73122 ]"
目录
7.相关产品
产品概述 返回TOP
CXLB73122 is a complete constant-current & constant voltage linear charger for single cell lithium-ion and Lithium-Polymer batteries. Its SOT-23 package and low external component count make CXLB73122 ideally suited for portable applications. Furthermore, the CXLB73122 is specifically designed to work within USB power specification. At the same time, CXLB73122 can also be used in the standalone lithium-ion and Lithium-polymer battery chargers. No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.22V, and the charge current can be programmed externally with a single resistor. The CXLB73122 automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached. When the input supply (wall adapter or USB supply) is removed, the CXLB73122 automatically enters a low current stage, dropping the battery drain current to less than 2uA. The CXLB73122 can be put into shutdown mode, reducing the supply current to 20uA. Other features include charge current monitor, undervoltage lockout, automatic recharge and a status pin to indicate charge termination and the presence of an input voltage. CXLB73122 is intentionally designed to have slightly negative Tempco. This provides extra protection to Lithium
产品特点 返回TOP
Ø Programmable Charge Current Up to 800mA.
Ø No MOSFET, Sense Resistor or Blocking Diode Required.
Ø Constant-Current/Constant-Voltage Operation with Thermal Protection to Maximize Charge Rate without Risk of Overheating.
Ø Charges Single Cell Li-Ion Batteries Directly from USB Port.
Ø Preset 4.22V Charge Voltage with ±1% Accuracy.
Ø 20uA Supply Current in Shutdown.
Ø 2.9V Trickle Charge Threshold
Ø Soft-Start Limits Inrush Current.
Ø Available in 5-Lead SOT-23 Package.
Ø 100% Lead (Pb)-Free
应用范围 返回TOP
Ø Cellular Telephones, PDA’s, MP3 Players.
Ø Charging Docks and Cradles
Ø Bluetooth Applications
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

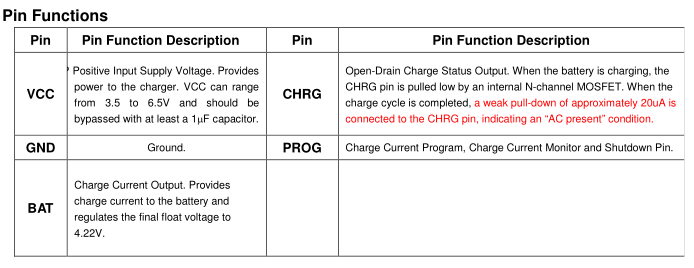

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
Battery Charger（锂电池充电） |
|||||||
|
Product |
status |
VccMax |
Vbat |
IOUT Max |
Polarity Detect |
OTP、OCP |
Pkg |
|
Active |
8V |
4.35 |
1A |
NO |
Yes |
SOT23-5 PSOP8 |
|
|
Active |
8V |
4.22 |
1A |
NO |
Yes |
SOP8 PSOP8（电子烟） |
|
|
Active |
8V |
4.22 |
800mA |
NO(单灯) |
Yes |
SOT23-5 |
|
|
Active |
8V |
4.22 |
800mA |
NO(双灯） |
Yes |
SOT23-6 PSOP8 |
|
|
Active |
8V |
4.22 |
1A |
NO |
Yes |
PSOP8/DFN2*2-6 |
|
|
Active |
8V |
4.22/4.35 |
2.5A |
YES(单灯） |
Yes |
PSOP8 |
|
|
Active |
8V |
4.22/4.35 |
2.5A |
YES(双灯） |
Yes |
PSOP8 |
|
